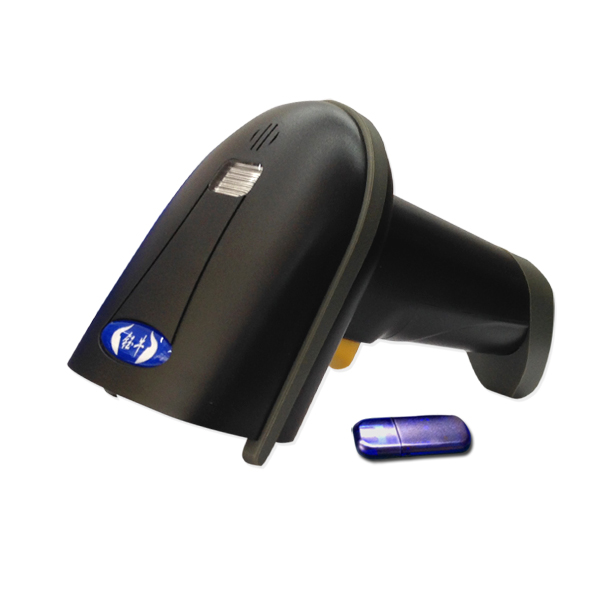

YN-A50 Laser bar corless scanning gun（2.4G）
- Price：Negotiable
Product Detail
|
Wireless Frequency：2.4G/433MHZ/Bluetooth |
|||
|
Transmission distance：2.4G=30m/433M=400m/ Bluetooth=10m |
|||
|
storage：200/150000 barcodes |
|
||
|
Working current：3.3V±10%x40mA |
Standby current ：18uA-5mA |
||
|
Working time：3 to 10 days |
Charging supply：5V-500mA |
||
|
Scanner parameters |
|||
|
Scanning type ：bi-directional |
Light source：650±20nm LD |
||
|
Scanning width ：30cm |
BER ：1/5millon、1/20million |
||
|
Printing Contract ：>25% |
Indication：Buzzer & LED |
||
|
Trigger Mode：Button，Continuous，Auto-Induction |
|||
|
Depth of Field |
3.3mil |
2mm-100mm |
CPU：ARM 32-bit Cortex |
|
10mil |
2mm-350mm |
Resolution ：3.3mil |
|
|
15mil |
5mm-500mm |
Decoding speed：200/sec |
|
|
30mil |
10mm-800mm |
|
|
|
Scanning angle：rotor angel±30°，inclination± 45°，declination ± 60° |
|||
|
Anti inference：industrial lighting or sun will not make any difference |
|||
|
Decoding Capability：UPC/EAN、with complementary UPC/EAN、Code128、Code39、Code 39Full ASCII、Coda bar、industrial /Interleaved 2 of 5 Code93、MSI、Code11、ISBN、ISSN、China post、etc (optional)GS1 Databar,Code32 |
|||
|
Button life ：500,000 times |
laser life：10000 hours |
||
|
Drop test ：1.5m |
Interface：USB，USB-COM |
||
|
Certificate ：CE，FCC，RoHS，Class = 1 \* ROMAN I |
|||
